RED/CAM MANUFACTURING INC.

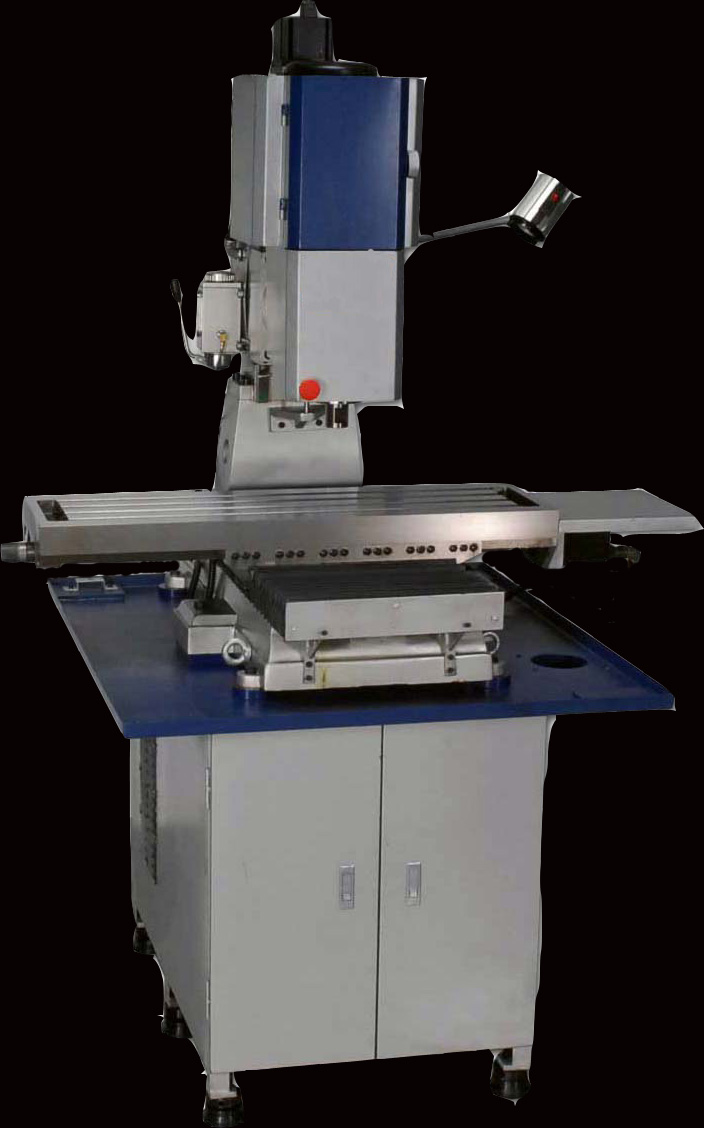

CNC Milling Machine

LM1240






CNC Milling Machine

Model LM1240

Mechanical/Electrical

(Metric)

(Imperial)

Working Table Surface

1016 mm x 305 mm

40" x 12"

Longitudinal Travel (X)

560 mm

22 in

Cross Travel (Y)

330 mm

13 in

Vertical Travel (Z)

293 mm

11 in

Weight

533 kg

1175 lbs.

Tolerance

+\- 0.0005"

Repeatability

+\- 0.0005"

Spindle Motor

2 HP

Spindle Speed Range

150 - 4000 RPM

Spindle Taper

R8

Power Requirements

220 VAC  15 A











This model's capacities match the size and capabilities of the Bridgeport Standard. Not used to require a lot more shop space an
